BLCMDhelicalharmonic Class Reference

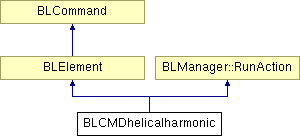

Inheritance diagram for BLCMDhelicalharmonic:

BLElement BLManager::RunAction BLCommand

List of all members.

Public Member Functions

 BLCMDhelicalharmonic ()
 Default constructor. Defines the command, args, etc.
virtual ~BLCMDhelicalharmonic ()
 Destructor.
 BLCMDhelicalharmonic (const BLCMDhelicalharmonic &r)
 Copy constructor.
BLElement * clone ()
 clone()
G4String commandName ()
 commandName() returns "helicalharmonic".
int command (BLArgumentVector &argv, BLArgumentMap &namedArgs)
 command() implements the helicalharmonic command.
void defineNamedArgs ()
 defineNamedArgs() defines the named arguments for the command.
void construct (G4RotationMatrix *relativeRotation, G4ThreeVector relativePosition, G4LogicalVolume *parent, G4String parentName, G4RotationMatrix *parentRotation, G4ThreeVector parentPosition)
 construct() - construct the helicalharmonic magnet
G4double getLength ()
 getLength() returns the fieldLength of the hh
G4double getWidth ()
 getWidth() returns the outer radius of the hh
G4double getHeight ()
 getHeight() returns the outer radius of the hh
G4bool isOK ()
 isOK() returns true.
bool isOutside (G4ThreeVector &local, G4double tolerance)
 isOutside() from BLElement.
void generatePoints (int npoints, std::vector< G4ThreeVector > &v)
 generatePoints() from BLElement.
void BeginOfRunAction (const G4Run *run)
 BeginOfRunAction() from BLManager::RunAction.
void EndOfRunAction (const G4Run *run)
 EndOfRunAction() from BLManager::RunAction.

Private Attributes

G4double radius
G4double length
int n
G4double b
G4double lambda
G4double phi0
BLCoordinateTransform global2local
G4Polymarker markers

Friends

class HelicalHarmonicField

Constructor & Destructor Documentation

BLCMDhelicalharmonic::BLCMDhelicalharmonic (  )

Default constructor. Defines the command, args, etc.

References b, BLCMDTYPE_ELEMENT, lambda, length, n, phi0, radius, BLCommand::registerCommand(), BLCommand::setDescription(), and BLCommand::setSynopsis().

Referenced by clone(), and command().

00144                                            : BLElement(), BLManager::RunAction()
00145 {
00146         // register the commandName(), and its synopsis and description.
00147         registerCommand(BLCMDTYPE_ELEMENT);
00148         setSynopsis("construct a helicalharmonic magnet.");
00149         setDescription(
00150                 "Creates a cylindrical region containing the field of \n"
00151                 "a magnetic helical harmonic of given order [n]. \n"
00152                 "The field is defined by the value of the (n-1) order \n"
00153                 "derivative [b] of the vertical field component (when \n"
00154                 "the initial phase is 0) with respect to the horizontal \n"
00155                 "coordinate at the center of the helix: \n"
00156                 "  b=d^(n-1)B_phi/dr^(n-1) @ [r=0 & phi-k*z+phi0=0], \n"
00157                 "where k=2*pi/lambda is the helix's wave number, \n"
00158                 "[lambda] is the length of the helix's period, and \n"
00159                 "phi0 is the initial phase. \n"
00160                 "The field components in the cylindrical frame are given by: \n"
00161                 "  B_phi=(2/(n*k))^(n-1)*b*(I[n-1](n*k*r)-I[n+1](n*k*r))* \n"
00162                 "        cos(n*(phi-k*z+phi0)), \n"
00163                 "  B_r  =(2/(n*k))^(n-1)*b*(I[n-1](n*k*r)+I[n+1](n*k*r))* \n"
00164                 "        sin(n*(phi-k*z+phi0)), \n"
00165                 "  B_z  =-2*(2/(n*k))^(n-1)*b*I[n](n*k*r)*cos(n*(phi-k*z+phi0)), \n"
00166                 "where I[n](x) is the modified Bessel function of the first kind \n"
00167                 "of order [n]. \n\n"
00168                 "Note that this Element generates magnetic field only,\n"
00169                 "and only within the cylinder defined by length and radius.\n"
00170                 "So it has no solid associated with it, and is invisible.\n");
00171
00172         // provide initial values for fields
00173         radius = 0.0;
00174         length = 0.0;
00175         n=1;
00176         b = 0.0;
00177         lambda = 1.0;
00178         phi0 = 0.0;
00179 }

virtual BLCMDhelicalharmonic::~BLCMDhelicalharmonic (  )  [inline, virtual]

Destructor.

00066 { }

BLCMDhelicalharmonic::BLCMDhelicalharmonic ( const BLCMDhelicalharmonic &  r  )

Copy constructor.

References b, lambda, length, n, phi0, and radius.

00182                                                                         : BLElement(r),
00183                                                         BLManager::RunAction(r)
00184 {
00185         // copy fields one at a time (transfers default values from the
00186         // default object to this new object).
00187         radius = r.radius;
00188         length = r.length;
00189         n = r.n;
00190         b = r.b;
00191         lambda = r.lambda;
00192         phi0 = r.phi0;
00193 }

Member Function Documentation

BLElement* BLCMDhelicalharmonic::clone (  )  [inline, virtual]

clone()

Implements BLElement.

References BLCMDhelicalharmonic().

00072 { return new BLCMDhelicalharmonic(*this); }

G4String BLCMDhelicalharmonic::commandName (  )  [inline, virtual]

commandName() returns "helicalharmonic".

Implements BLCommand.

00075 { return "helicalharmonic"; }

int BLCMDhelicalharmonic::command ( BLArgumentVector &  argv,
BLArgumentMap &  namedArgs
) [virtual]

command() implements the helicalharmonic command.

Implements BLCommand.

References BLCMDhelicalharmonic(), BLCommand::handleNamedArgs(), BLCommand::print(), BLCommand::printError(), and BLElement::setName().

00196 {
00197         const char *CoDE="BLCMDhelicalharmonic::command";
00198
00199         if(argv.size() != 1) {
00200                 printError("helicalharmonic: Invalid command, must have name");
00201                 return -1;
00202         }
00203
00204         if(argv[0] == "default") {
00205                 return defaultHelicalHarmonic.handleNamedArgs(namedArgs);
00206         }
00207
00208         BLCMDhelicalharmonic *t = new BLCMDhelicalharmonic(defaultHelicalHarmonic);
00209         t->setName(argv[0]);
00210         t->handleNamedArgs(namedArgs);  // call it twice to ensure that n is
00211                                         // set for units of b.
00212         int retval = t->handleNamedArgs(namedArgs);
00213
00214         t->print(argv[0]);
00215
00216         return retval;
00217 }

void BLCMDhelicalharmonic::defineNamedArgs (  )  [virtual]

defineNamedArgs() defines the named arguments for the command.

Reimplemented from BLCommand.

References BLCommand::argDouble(), BLCommand::argInt(), b, lambda, length, n, phi0, and radius.

00220 {
00221         argDouble(radius,"radius","The radius of the field region (mm)",mm);
00222         argDouble(length,"length","The length of the field region (mm)",mm);
00223         argInt(n,"n","Order of helical harmonic (i.e. n=1 for dipole)");
00224         // see comment in command() about setting n
00225         argDouble(b,"b","(n-1)-order derivative of the field at the center "
00226                 "(T/m^(n-1))",tesla/pow(meter,(n-1)));
00227         argDouble(lambda,"lambda","Helix period along the Z axis (mm).",mm);
00228         argDouble(phi0,"phi0","The phase of the XY field at the entrance (rad).");
00229 }

void BLCMDhelicalharmonic::construct ( G4RotationMatrix *  relativeRotation,
G4ThreeVector  relativePosition,
G4LogicalVolume *  parent,
G4String  parentName,
G4RotationMatrix *  parentRotation,
G4ThreeVector  parentPosition
) [virtual]

construct() - construct the helicalharmonic magnet

Implements BLElement.

References BLGlobalField::addElementField(), getLength(), BLElement::getName(), BLManager::getObject(), BLGlobalField::getObject(), global2local, HelicalHarmonicField, and BLManager::registerRunAction().

00238 {
00239         G4String thisname = parentName+getName();
00240
00241         // get globalRotation and globalPosition
00242         G4RotationMatrix *globalRotation = 0;
00243         if(relativeRotation && parentRotation) {
00244                 globalRotation =
00245                 new G4RotationMatrix(*parentRotation * *relativeRotation);
00246         } else if(relativeRotation) {
00247                 globalRotation = relativeRotation;
00248         } else if(parentRotation) {
00249                 globalRotation = parentRotation;
00250         }
00251         G4ThreeVector globalPosition(relativePosition + parentPosition);
00252         if(parentRotation)
00253                 globalPosition = *parentRotation * relativePosition +
00254                                 parentPosition;
00255
00256         global2local = BLCoordinateTransform(globalRotation,globalPosition);
00257
00258         G4double zmin = globalPosition[2]-getLength()/2.0;
00259         G4double zmax = globalPosition[2]+getLength()/2.0;
00260
00261         HelicalHarmonicField *p = new HelicalHarmonicField(global2local,this);
00262         BLGlobalField::getObject()->addElementField(p);
00263
00264         printf("BLCMDhelicalharmonic::Construct %s parent=%s relZ=%.1f globZ=%.1f\n"
00265                         "\tzmin=%.1f zmax=%.1f\n",
00266                 thisname.c_str(),parentName.c_str(),relativePosition[2],
00267                 globalPosition[2], zmin,zmax);
00268
00269         BLManager::getObject()->registerRunAction(this,false);
00270 }

G4double BLCMDhelicalharmonic::getLength (  )  [inline, virtual]

getLength() returns the fieldLength of the hh

Implements BLElement.

References length.

Referenced by construct().

00092 { return length; }

G4double BLCMDhelicalharmonic::getWidth (  )  [inline, virtual]

getWidth() returns the outer radius of the hh

Implements BLElement.

References radius.

00095 { return radius*2.0; }

G4double BLCMDhelicalharmonic::getHeight (  )  [inline, virtual]

getHeight() returns the outer radius of the hh

Implements BLElement.

References radius.

00098 { return radius*2.0; }

G4bool BLCMDhelicalharmonic::isOK (  )  [inline, virtual]

isOK() returns true.

Implements BLElement.

00101 { return true; }

bool BLCMDhelicalharmonic::isOutside ( G4ThreeVector &  local,
G4double  tolerance
) [inline, virtual]

isOutside() from BLElement.

Implements BLElement.

00105                 { return true; }

void BLCMDhelicalharmonic::generatePoints ( int  npoints,
std::vector< G4ThreeVector > &  v
) [inline, virtual]

generatePoints() from BLElement.

Implements BLElement.

00109                 { v.clear(); }

void BLCMDhelicalharmonic::BeginOfRunAction ( const G4Run *  run  )  [virtual]

BeginOfRunAction() from BLManager::RunAction.

Implements BLManager::RunAction.

References markers.

00273 {
00274         markers.clear();
00275 }

void BLCMDhelicalharmonic::EndOfRunAction ( const G4Run *  run  )  [virtual]

EndOfRunAction() from BLManager::RunAction.

Implements BLManager::RunAction.

References BLCoordinateTransform::getGlobal(), global2local, lambda, length, MARKER_SIZE, markers, n, phi0, and radius.

00278 {
00279         G4VVisManager* pVVisManager = G4VVisManager::GetConcreteInstance();
00280         if (!pVVisManager) return;
00281
00282 #ifdef STUB // omit markers
00283         double dz = lambda/10.0;
00284         int n = (int)(length/dz) + 1;
00285         for(int i=0; i<n; ++i) {
00286                 G4double local[4], global[4];
00287                 G4double phi = phi0 + i * dz * 2.0*pi/lambda;
00288                 local[0] = radius/2.0*cos(phi);
00289                 local[1] = radius/2.0*sin(phi);
00290                 local[2] = -length/2.0 + i * dz;
00291                 local[3] = 0.0;
00292                 global2local.getGlobal(local,global);
00293                 G4ThreeVector point(global[0],global[1],global[2]);
00294                 markers.push_back(point);
00295         }
00296         markers.SetMarkerType(G4Polymarker::circles);
00297         markers.SetScreenSize(MARKER_SIZE);
00298         markers.SetFillStyle(G4VMarker::filled);
00299         G4VisAttributes va(G4Colour(1.,1.,1.));  // white
00300         markers.SetVisAttributes(&va);
00301
00302         pVVisManager->Draw(markers);
00303 #endif // STUB
00304 }

Friends And Related Function Documentation

friend class HelicalHarmonicField [friend]

Referenced by construct().

Member Data Documentation

G4double BLCMDhelicalharmonic::radius [private]

Referenced by BLCMDhelicalharmonic(), defineNamedArgs(), EndOfRunAction(), getHeight(), getWidth(), and HelicalHarmonicField::HelicalHarmonicField().

G4double BLCMDhelicalharmonic::length [private]

Referenced by BLCMDhelicalharmonic(), defineNamedArgs(), EndOfRunAction(), getLength(), and HelicalHarmonicField::HelicalHarmonicField().

int BLCMDhelicalharmonic::n [private]

Referenced by BLCMDhelicalharmonic(), defineNamedArgs(), EndOfRunAction(), and HelicalHarmonicField::HelicalHarmonicField().

G4double BLCMDhelicalharmonic::b [private]

Referenced by BLCMDhelicalharmonic(), defineNamedArgs(), and HelicalHarmonicField::HelicalHarmonicField().

G4double BLCMDhelicalharmonic::lambda [private]

Referenced by BLCMDhelicalharmonic(), defineNamedArgs(), EndOfRunAction(), and HelicalHarmonicField::HelicalHarmonicField().

G4double BLCMDhelicalharmonic::phi0 [private]

Referenced by BLCMDhelicalharmonic(), defineNamedArgs(), EndOfRunAction(), and HelicalHarmonicField::HelicalHarmonicField().

BLCoordinateTransform BLCMDhelicalharmonic::global2local [private]

Referenced by construct(), and EndOfRunAction().

G4Polymarker BLCMDhelicalharmonic::markers [private]

Referenced by BeginOfRunAction(), and EndOfRunAction().

The documentation for this class was generated from the following file:
g4beamline
