BLElementField Class Reference

#include <BLElementField.hh>

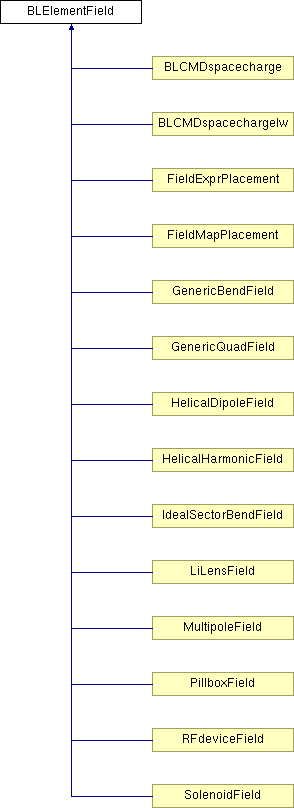

Inheritance diagram for BLElementField:

List of all members.

---

Detailed Description

class BLElementField - interface for the EM field of one element

This is the interface class used by BLGlobalField to compute the field value at a given point[].

An element command that represents an element with an EM field will derive a class from this one and implement the computation for the element. The construct() function of the element command class will add the derived object into BLGlobalField. Such derived classes are typically local to the file implementing the element command.

Public Member Functions
	BLElementField ()
	Constructor.
virtual	~BLElementField ()
	Destructor.
void	setGlobalPoint (const G4double point[4])
	setGlobalPoint() ensures that the point is within the global bounding box of this ElementField. global coordinates. Normally called 8 times for the corners of the local bounding box, after a local->global coordinate transform. If never called, the global bounding box is infinite. BEWARE: if called only once, the bounding box is just a point.
bool	isInBoundingBox (const G4double point[4]) const
	isInBoundingBox() returns true if the point is within the global bounding box. global coordinates.
virtual void	addFieldValue (const G4double point[4], G4double field[6]) const =0
	addFieldValue() will add the field value for this element to field[]. Implementations must be sure to verify that point[] is within the field region, and do nothing if not. point[] is in global coordinates and geant4 units; x,y,z,t. field[] is in geant4 units; Bx,By,Bz,Ex,Ey,Ez. For efficiency, the caller may (but need not) call isInBoundingBox(point), and only call this function if that returns true.
Protected Attributes
G4double	minX
G4double	minY
G4double	minZ
G4double	maxX
G4double	maxY
G4double	maxZ
Private Member Functions
	BLElementField (const BLElementField &)
BLElementField &	operator= (const BLElementField &)

---

Constructor & Destructor Documentation

BLElementField::BLElementField

(

const BLElementField &

)

[private]

BLElementField::BLElementField

(

)

[inline]

Constructor.

References LARGE, maxX, maxY, maxZ, minX, minY, and minZ.

                { minX=minY=minZ=-LARGE; maxX=maxY=maxZ=LARGE; }

virtual BLElementField::~BLElementField

(

)

[inline, virtual]

Destructor.

{ }

---

Member Function Documentation

BLElementField& BLElementField::operator=

(

const BLElementField &

)

[private]

void BLElementField::setGlobalPoint

(

const G4double

point[4]

)

[inline]

setGlobalPoint() ensures that the point is within the global bounding box of this ElementField. global coordinates. Normally called 8 times for the corners of the local bounding box, after a local->global coordinate transform. If never called, the global bounding box is infinite. BEWARE: if called only once, the bounding box is just a point.

References LARGE, maxX, maxY, maxZ, minX, minY, and minZ.

Referenced by FieldExprPlacement::FieldExprPlacement(), FieldMapPlacement::FieldMapPlacement(), GenericBendField::GenericBendField(), GenericQuadField::GenericQuadField(), HelicalDipoleField::HelicalDipoleField(), HelicalHarmonicField::HelicalHarmonicField(), MultipoleField::MultipoleField(), PillboxField::PillboxField(), RFdeviceField::RFdeviceField(), and SolenoidField::SolenoidField().

                                                     {
                if(minX == -LARGE || minX > point[0]) minX = point[0];
                if(minY == -LARGE || minY > point[1]) minY = point[1];
                if(minZ == -LARGE || minZ > point[2]) minZ = point[2];
                if(maxX == LARGE || maxX < point[0]) maxX = point[0];
                if(maxY == LARGE || maxY < point[1]) maxY = point[1];
                if(maxZ == LARGE || maxZ < point[2]) maxZ = point[2];
        }

bool BLElementField::isInBoundingBox

(

const G4double

point[4]

)

const [inline]

isInBoundingBox() returns true if the point is within the global bounding box. global coordinates.

References maxX, maxY, maxZ, minX, minY, and minZ.

Referenced by BLGlobalField::GetFieldValue().

                                                            {
                if(point[2] < minZ || point[2] > maxZ) return false;
                if(point[0] < minX || point[0] > maxX) return false;
                if(point[1] < minY || point[1] > maxY) return false;
                return true;
        }

virtual void BLElementField::addFieldValue	(	const G4double	point[4],
		G4double	field[6]
	)			const [pure virtual]

addFieldValue() will add the field value for this element to field[]. Implementations must be sure to verify that point[] is within the field region, and do nothing if not. point[] is in global coordinates and geant4 units; x,y,z,t. field[] is in geant4 units; Bx,By,Bz,Ex,Ey,Ez. For efficiency, the caller may (but need not) call isInBoundingBox(point), and only call this function if that returns true.

Implemented in FieldExprPlacement, FieldMapPlacement, GenericBendField, GenericQuadField, HelicalDipoleField, HelicalHarmonicField, IdealSectorBendField, LiLensField, MultipoleField, PillboxField, RFdeviceField, SolenoidField, BLCMDspacecharge, and BLCMDspacechargelw.

Referenced by BLGlobalField::GetFieldValue().

---

Member Data Documentation

G4double BLElementField::minX [protected]

Referenced by BLElementField(), isInBoundingBox(), and setGlobalPoint().

G4double BLElementField::minY [protected]

Referenced by BLElementField(), isInBoundingBox(), and setGlobalPoint().

G4double BLElementField::minZ [protected]

Referenced by BLElementField(), isInBoundingBox(), and setGlobalPoint().

G4double BLElementField::maxX [protected]

Referenced by BLElementField(), isInBoundingBox(), and setGlobalPoint().

G4double BLElementField::maxY [protected]

Referenced by BLElementField(), isInBoundingBox(), and setGlobalPoint().

G4double BLElementField::maxZ [protected]

Referenced by BLElementField(), isInBoundingBox(), and setGlobalPoint().

---

The documentation for this class was generated from the following file:

• BLElementField.hh
